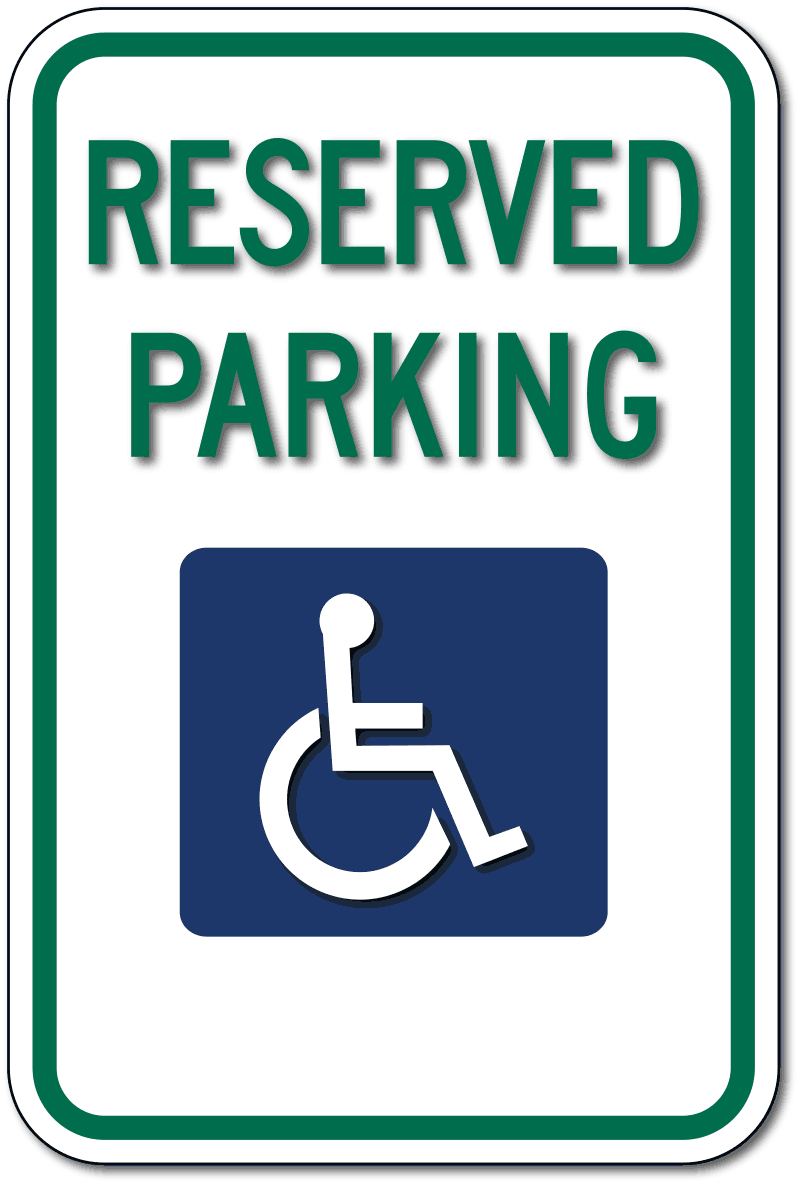

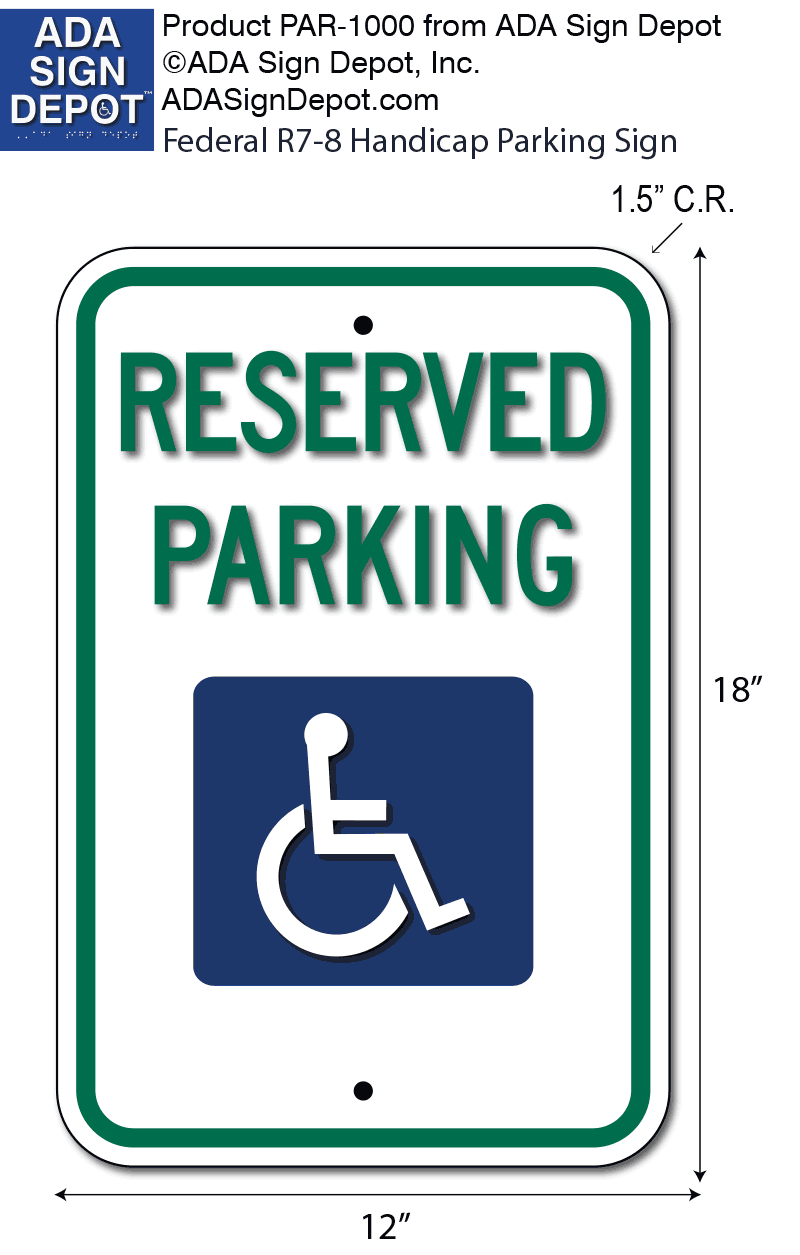

R7-8 Federal Handicapped Reserved Parking Sign - 12" x 18"

Federal R7-8 Handicap Parking Signs - 12x18

  • $49.95 $49.95

Ships in 2-3 Business Days

R7-8 Federal Handicapped Reserved Parking Sign - 12" x 18" - Engineer Grade Prismatic Reflective Aluminum Handicap Parking Signs

We make our parking signs with an Engineer Grade Prismatic Reflective Sheeting sign face applied to Heavy-Gauge (.063) Rust-Free Aluminum in compliance with specifications from the Federal Manual of Uniform Traffic Control Devices (MUTCD).

Federal R7-8 Handicap Parking Sign Used in Most States

  • Meets all Federal MUTCD (Manual of Uniform Traffic Control Devices) Specification for Design, Materials and Manufacturing
  • Engineer Grade Prismatic Reflective sign face
  • Heavy-gauge .063 aluminum
  • Durable, Rust-Free, and Rated for a Minimum of 7 Years Outdoor No Fade Service
  • Parking sign is pre-drilled with standard .375-inch diameter holes at top and bottom center for easy mounting to posts or walls

The Federal R7-8 Handicapped Reserved Parking Sign is used in these states: AK, AL, AR, CO, DE, HI, IA, ID, IL, IN, KS, KY, LA, MA, MD, ME, MS, MT, NC, ND, NE, NH, NM, NY, OR, PA, RI, SC, SD, TX, UT, VT, WY

Looking for the federal sign to use for van accessible parking spaces? View/order it here: Van-Accessible Parking Sign

Shop all our Handicapped Parking ADA Signs

Making your parking lot accessible to everyone is the law. And it's also smart business. Having designated parking spaces for handicapped customers and visitors to your business in part of efficiently utilizing your parking area. Using legal, code-compliant handicapped parking signs from ADA Sign Depot is one way to efficiently manage and maintain your parking lot. Because parking has a direct impact on the bottom line and success of your business.

U.S. Department of Justice | Accessible Parking Spaces Guide

When a business, State or local government agency, or other covered entity restripes a parking lot, it must provide accessible parking spaces as required by the ADA Standards for Accessible Design. Failure to do so would violate the ADA. In addition, businesses or privately owned facilities that provide goods or services to the public have a continuing ADA obligation to remove barriers to access in existing parking lots when it is readily achievable to do so. Because restriping is relatively inexpensive, it is readily achievable in most cases. Accessible parking spaces for cars have at least a 60-inch-wide access aisle located adjacent to the designated parking space. The access aisle is just wide enough to permit a person using a wheelchair to enter or exit the car. These parking spaces are identified with a sign and located on level ground. Van-Accessible Parking Spaces Van-accessible parking spaces are the same as accessible parking spaces for cars except for three features needed for vans:

  • a wider access aisle (96") to accommodate a wheelchair lift;
  • vertical clearance to accommodate van height at the van parking space, the adjacent access aisle, and on the vehicular route to and from the van-accessible space, and
  • an additional sign that identifies the parking spaces as "van accessible."
  • One of eight accessible parking spaces, but always at least one, must be van-accessible.
Features of Accessible Parking Spaces for Cars
  • Sign with the international symbol of accessibility mounted high enough so it can be seen while a vehicle is parked in the space.
  • If the accessible route is located in front of the space, install wheelstops to keep vehicles from reducing width below 36 inches.
  • Access aisle of at least 60-inch width must be level (1:50 maximum slope in all directions), be the same length as the adjacent parking space(s) it serves and must connect to an accessible route to the building. Ramps must not extend into the access aisle.
  • Boundary of the access aisle must be marked. The end may be a squared or curved shape.
  • Two parking spaces may share an access aisle.
Three Additional Features for Van-Accessible Parking Spaces
  • Sign with "van accessible" and the international symbol of accessibility mounted high enough so the sign can be seen when a vehicle is parked in the space
  • 96" min. width access aisle, level (max. slope 1:50 in all directions), located beside the van parking space
  • Min. 98-inch-high clearance at van parking space, access aisle, and on vehicular route to and from van space

Location Accessible parking spaces must be located on the shortest accessible route of travel to an accessible facility entrance. Where buildings have multiple accessible entrances with adjacent parking, the accessible parking spaces must be dispersed and located closest to the accessible entrances. When accessible parking spaces are added in an existing parking lot, locate the spaces on the most level ground close to the accessible entrance. An accessible route must always be provided from the accessible parking to the accessible entrance. An accessible route never has curbs or stairs, must be at least 3- feet wide, and has a firm, stable, slip-resistant surface. The slope along the accessible route should not be greater than 1:12 in the direction of travel. Accessible parking spaces may be clustered in one or more lots if equivalent or greater accessibility is provided in terms of distance from the accessible entrance, parking fees, and convenience. Van-accessible parking spaces located in parking garages may be clustered on one floor (to accommodate the 98-inch minimum vertical height requirement).

Free Technical Assistance Answers to technical and general questions about restriping parking lots or other ADA requirements are available by telephone on weekdays. You may also order the ADA Standards for Accessible Design and other ADA publications, including regulations for private businesses or State and local governments, at any time day or night. Information about ADA-related IRS tax credits and deductions is also available from the ADA Information Line. 800-514-0301 (voice) | 800-514-0383 (tty)

Reference: ADA Standards for Accessible Design (28 CFR Part 36): 4.1.6 Alterations; 4.1.2 Accessible Sites and Exterior Facilities: New Construction, and 4.1.6 Parking and Passenger Loading Zones.
